BioTek EL406 Microplate Washer Dispenser 406PSUB1 w/ BioStack, VAC/Direct Waste

SKU: 3364640


1 in stock


BioTek EL406 Microplate Washer Dispenser 406PSUB1 w/ BioStack, VAC/Direct Waste System and Accessories

**This System has been tested to specifications and buyer can expect a working system. Comes with a 30 day warranty. Everything in pictured included. Has slight cosmetic blemishes from normal use. See photos for further details.

System Includes:

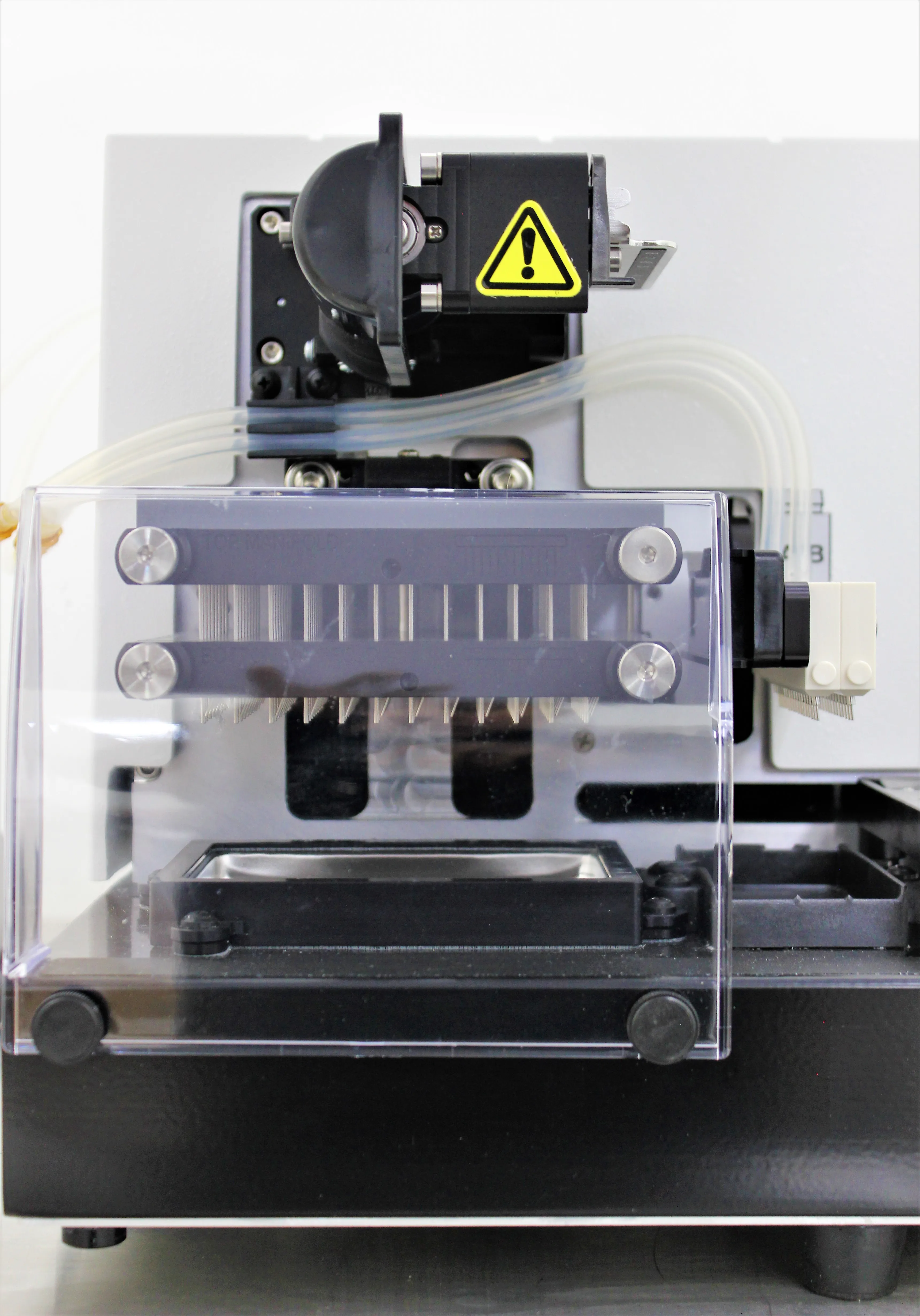

  • BioTek EL406 Microplate Washer Dispenser 406PSUB1

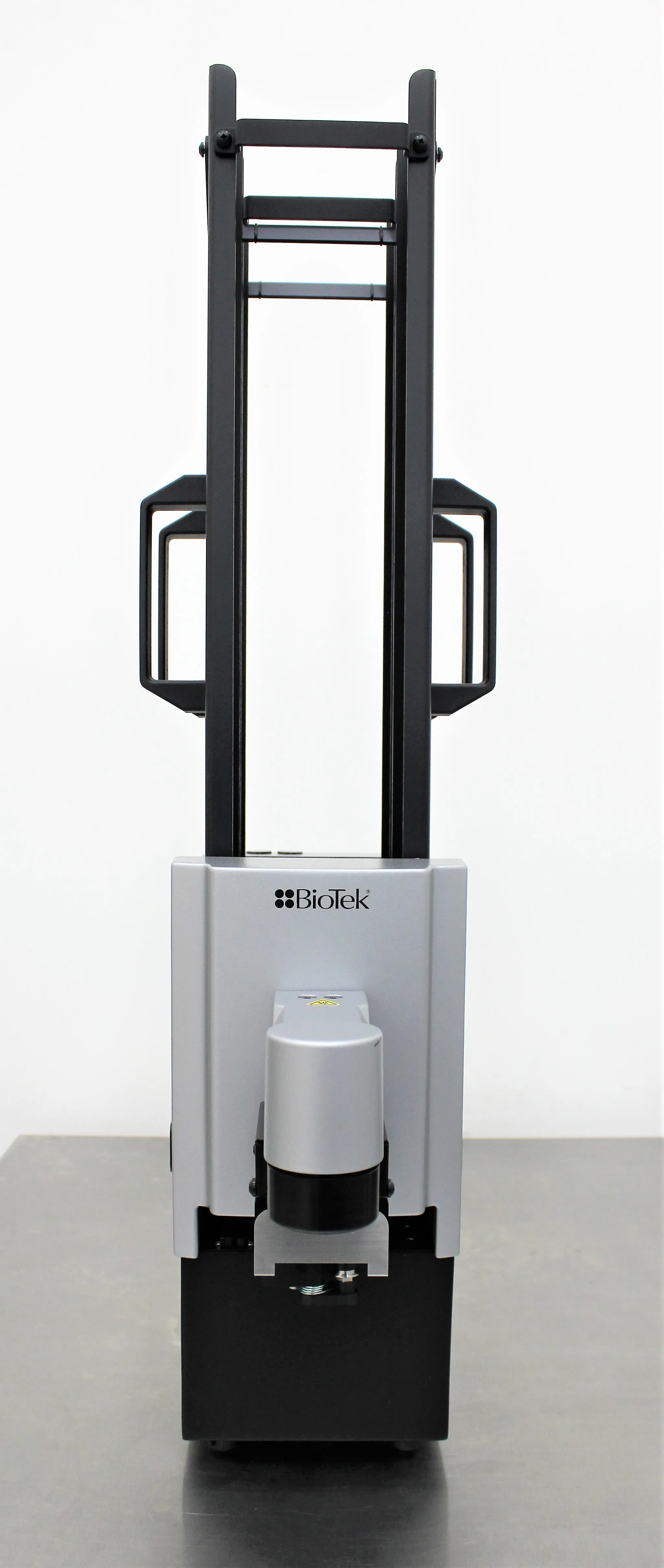

  • BioStack; Microplate Stacker BIOSTACK3WR
  • Easily removable, interchangeable stack (Qty2) (one input and one output)

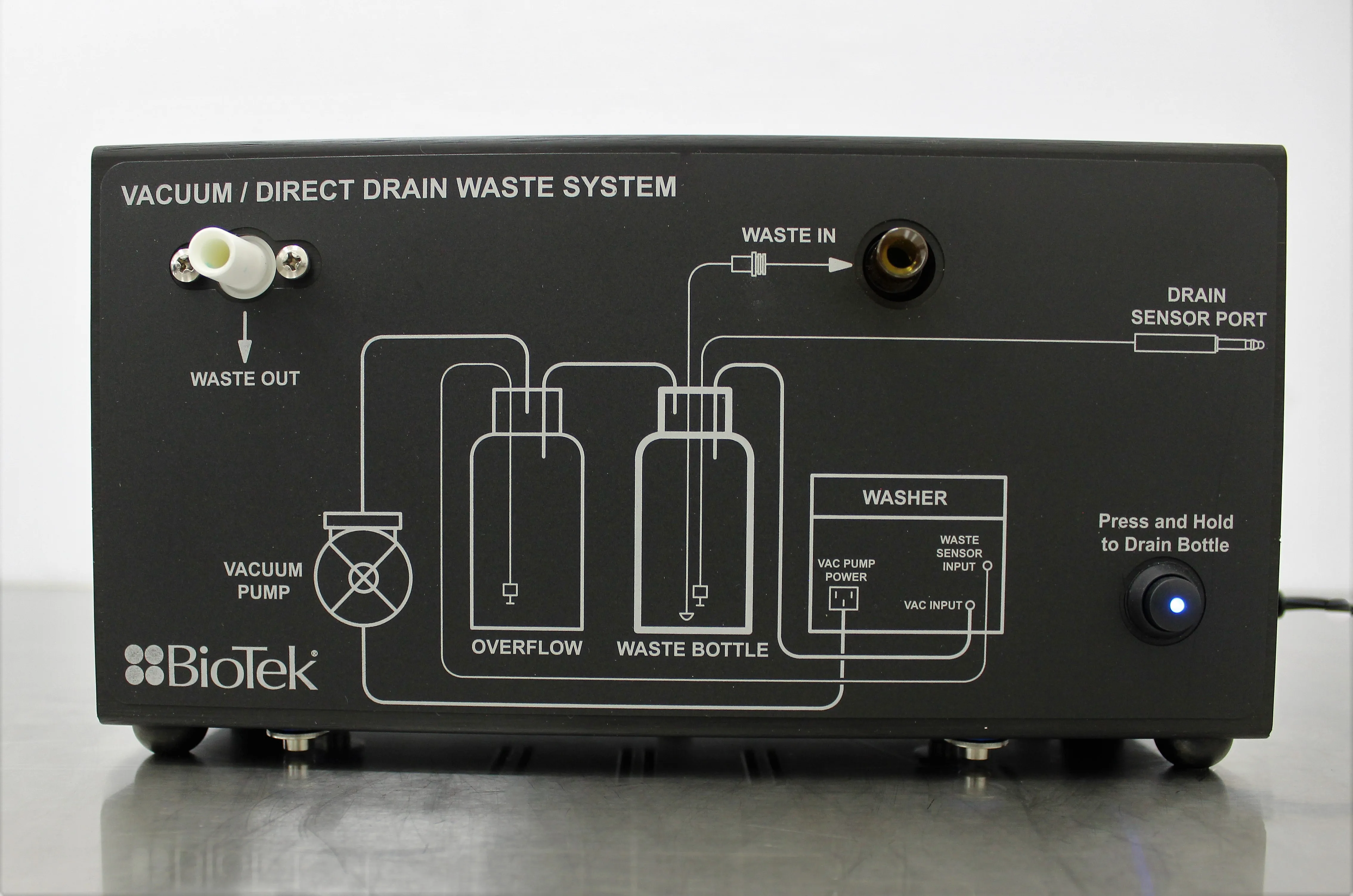

  • BioTek Direct Drain Module, vacuum System

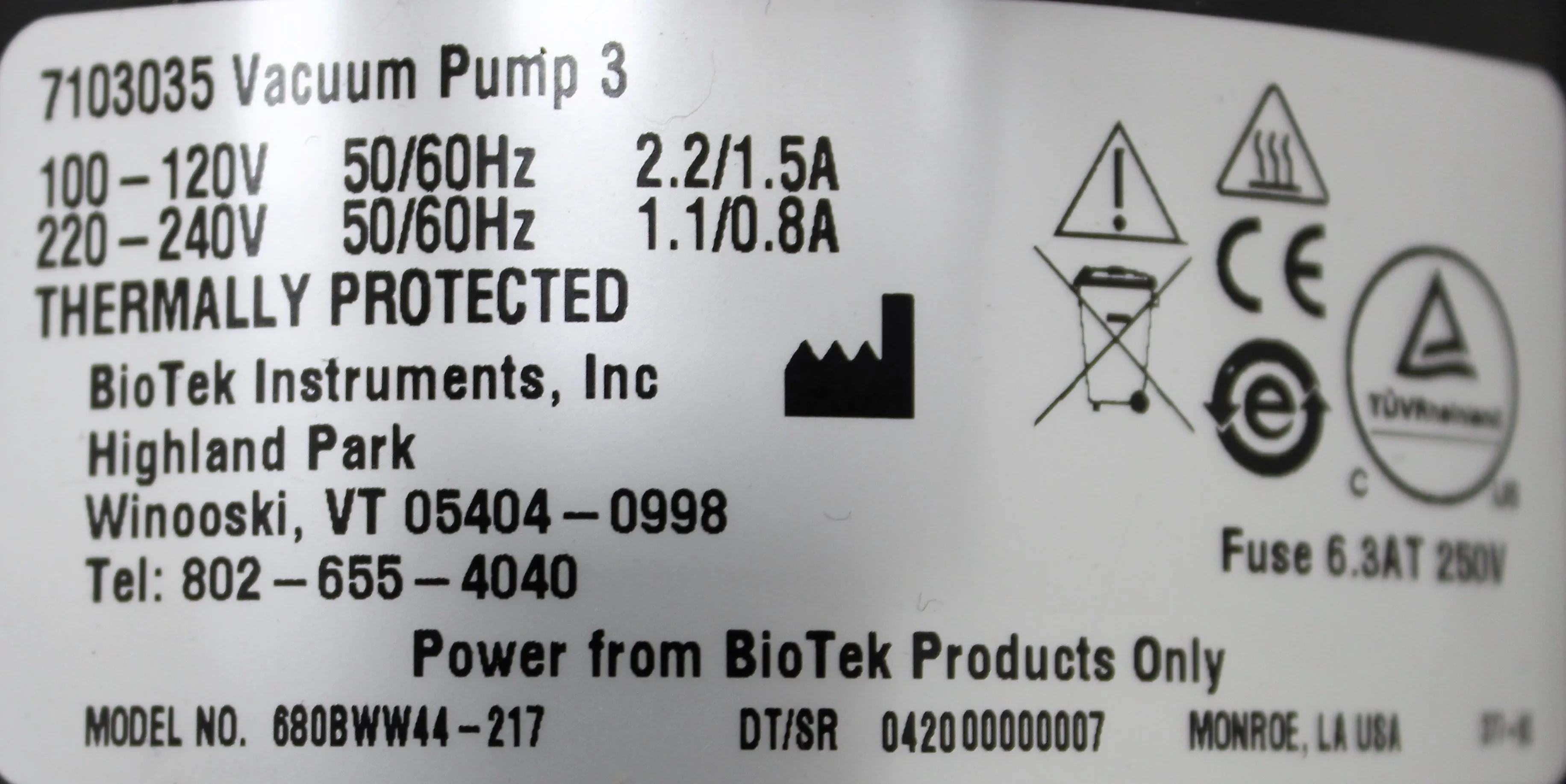

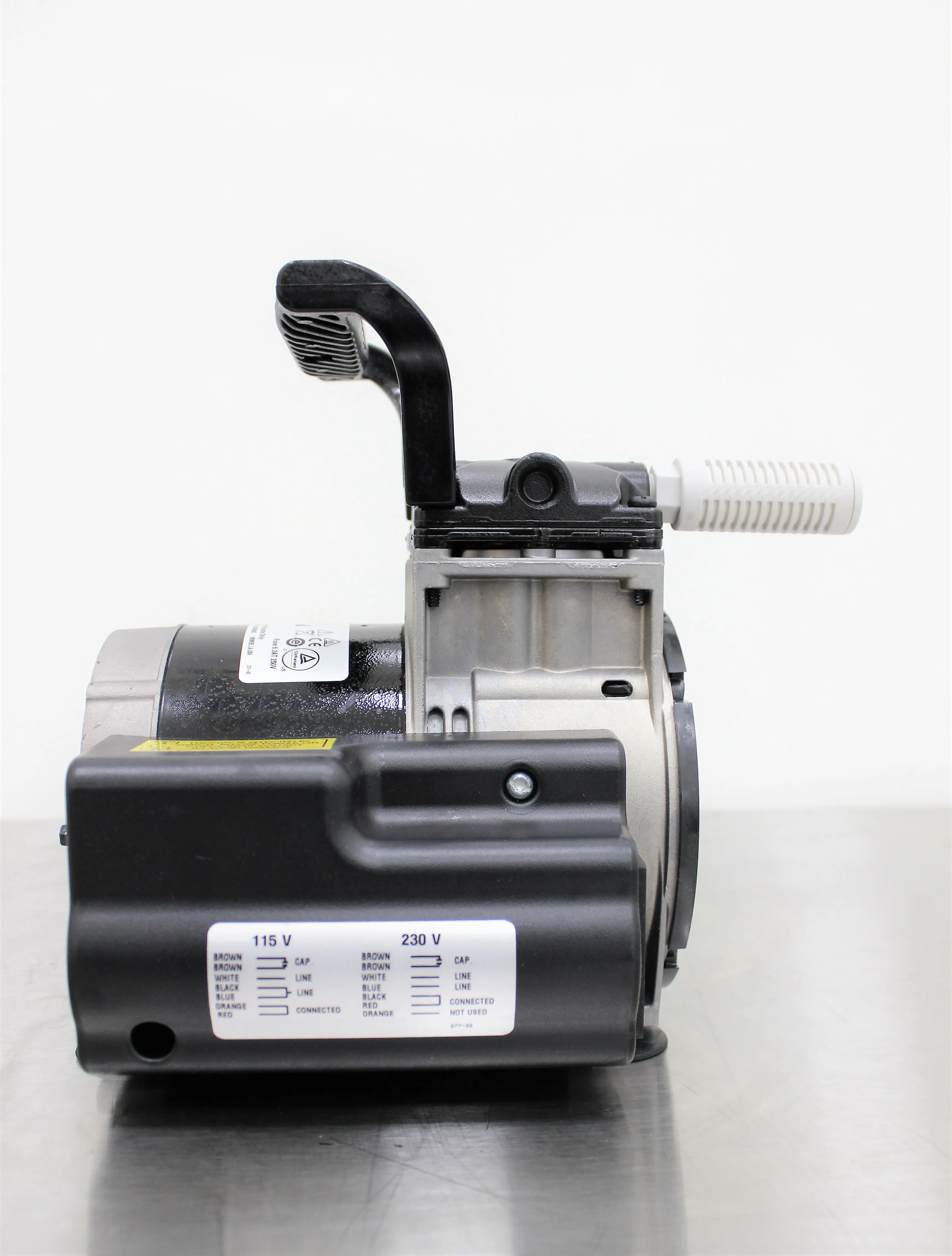

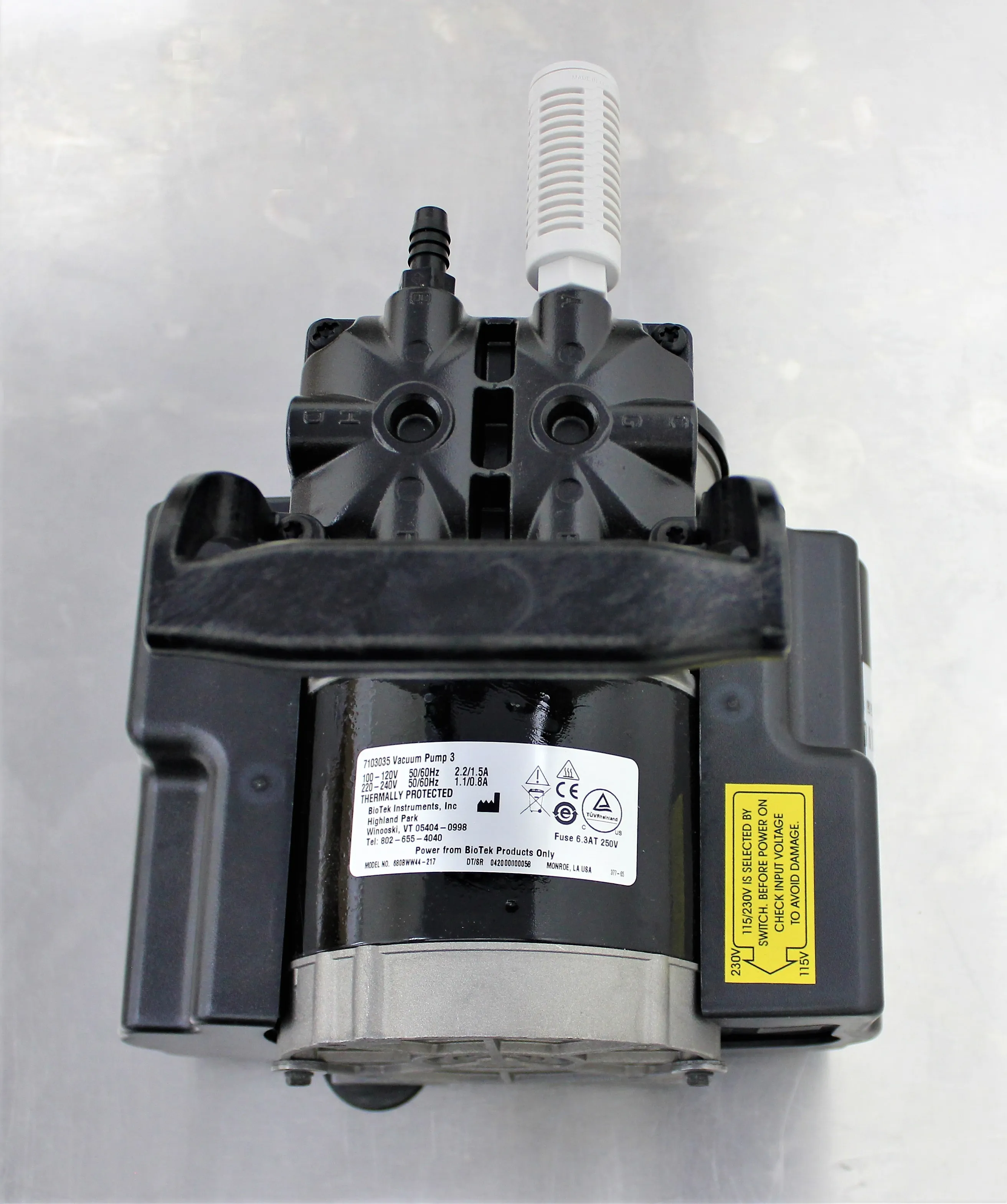

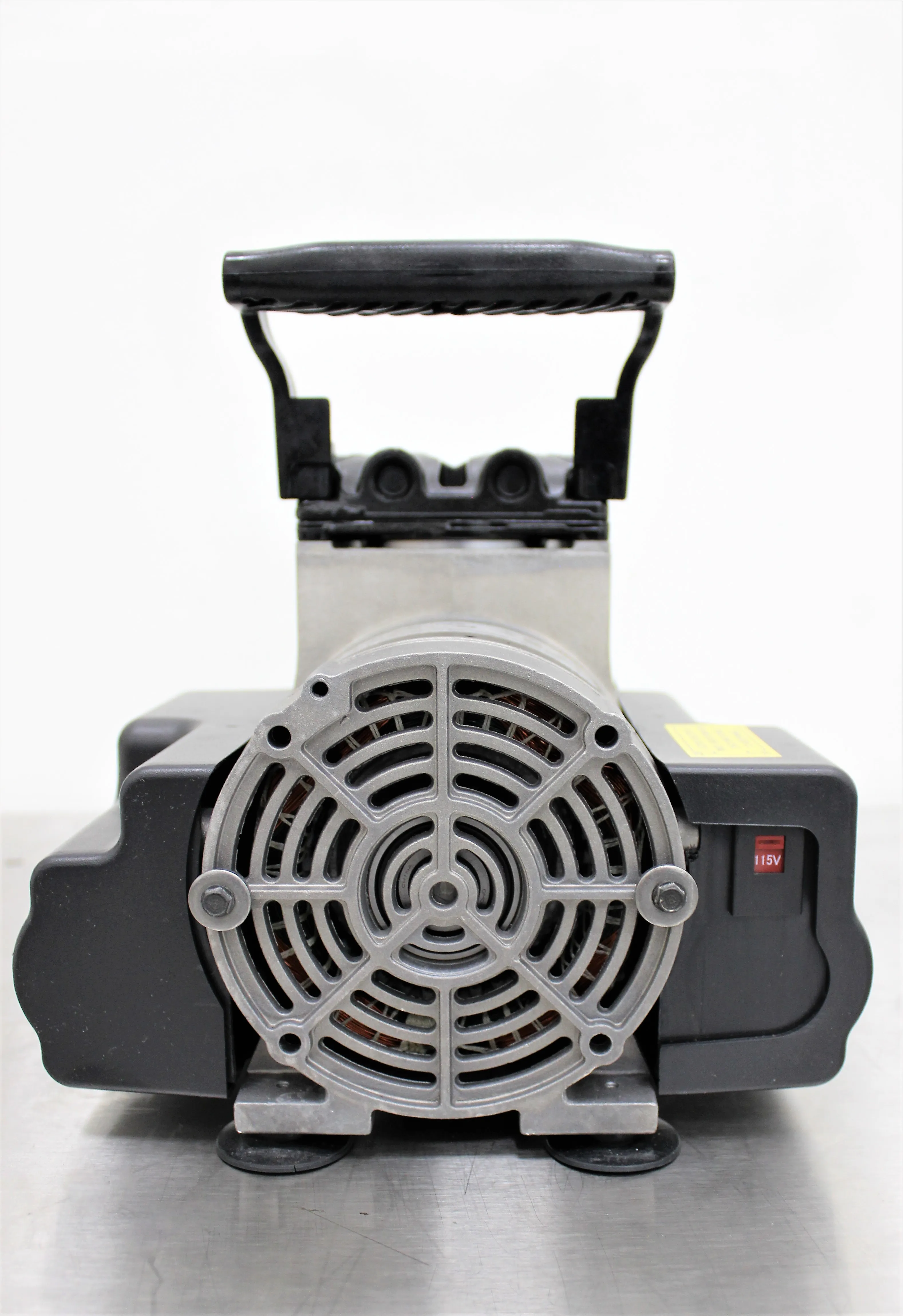

  • BioTek Vacuum Pump 3, 7103035
  • Waste Bottle with waste sensor (2 Carboys)
  • Accessories ; Hoses, Communication and power cables.

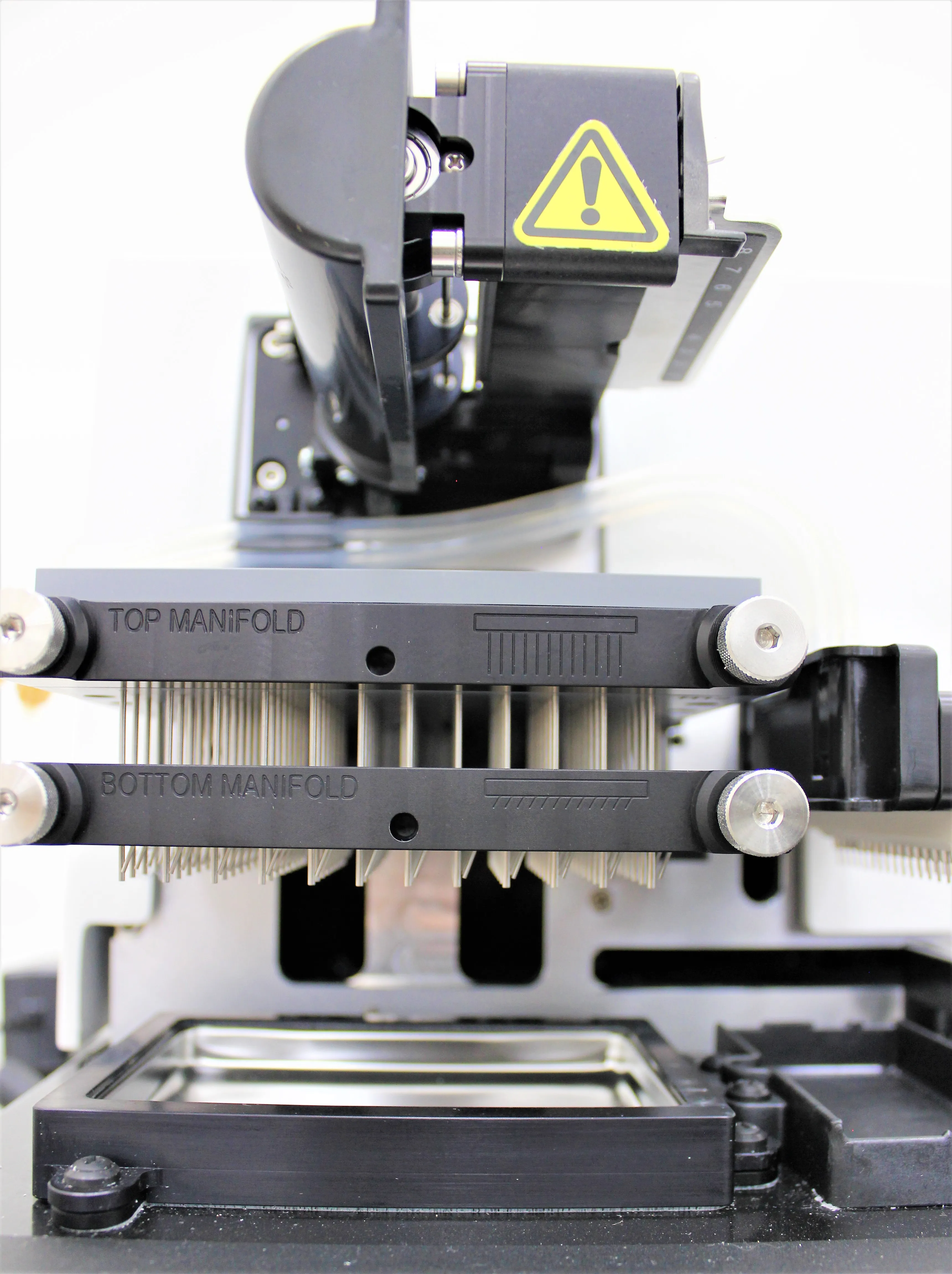

The BioTek EL406 washer dispenser is a compact instrument offering fast, full plate washing along with three reagent dispensers. The EL406 capabilities include washing and dispensing for standard assays, plus biomagnetic separation and vacuum filtration protocols. The Dual-Action manifold optimizes washing for loosely adherent cell monolayers. The patented Ultrasonic Advantage prevents blockages in the manifold tubes before washing, to reduce assay failure. This modular plate washer dispenser offers flexibility with both syringe pump and peristaltic pump dispensers, along with plate washing, on a single platform.

  • Fast, full microplate washing, optimized for loosely adherent cell monolayers
  • Up to three reagent dispensers with choice of either peristaltic pump or syringe drive technologies for different assay requirements 96-, 384- and 1536-well microplates
  • Automates long and tedious assay liquid-handling processes
  • Smaller benchtop or robotic system footprint compared to separate washer and three dispensers
  • BioStack compatible for automated processing of up to 50 standard height microplates
  • Full control with powerful Liquid Handling Control PC Software
  • Optimized washing for loosely adherent cell layers
  • Built-in, patent-pending Ultrasonic Advantage for unattended wash manifold maintenance
  • Optional buffer switching of up to four buffers for complex wash routines
±3%; Dispensing: ±1 μL at 5 μL, +1 μL at 20 μL, ±1% at 100 μL
1 or 2 L (optional)
500 NL to 3000 μL/well
≤2 μL/well
Programmable in minutes and seconds, up to 60 min.
14.5 kg
High to Low Flow; Optimized rates for cell assays
100/240 V
Wash: <3% CV (model dependent); Dispense (Syringe Pump): ≤5% CV at 5 μL, ≤2.5% CV at 20 μL, ≤1% CV at 100 μL
96-, 384- and 1536-well; Low profile and standard height; Solid and filter bottom (option) plates
96 wells: 300 μL/well, 96-tube manifold: 13 s; 384 wells: 100 μL/well, 192-tube manifold: 17 s; 1536 wells: 10 μL/wells, two 32-tube manifolds: 36 s
Microplate Washer/Dispenser
1 to 250
50/60 Hz
1 μL

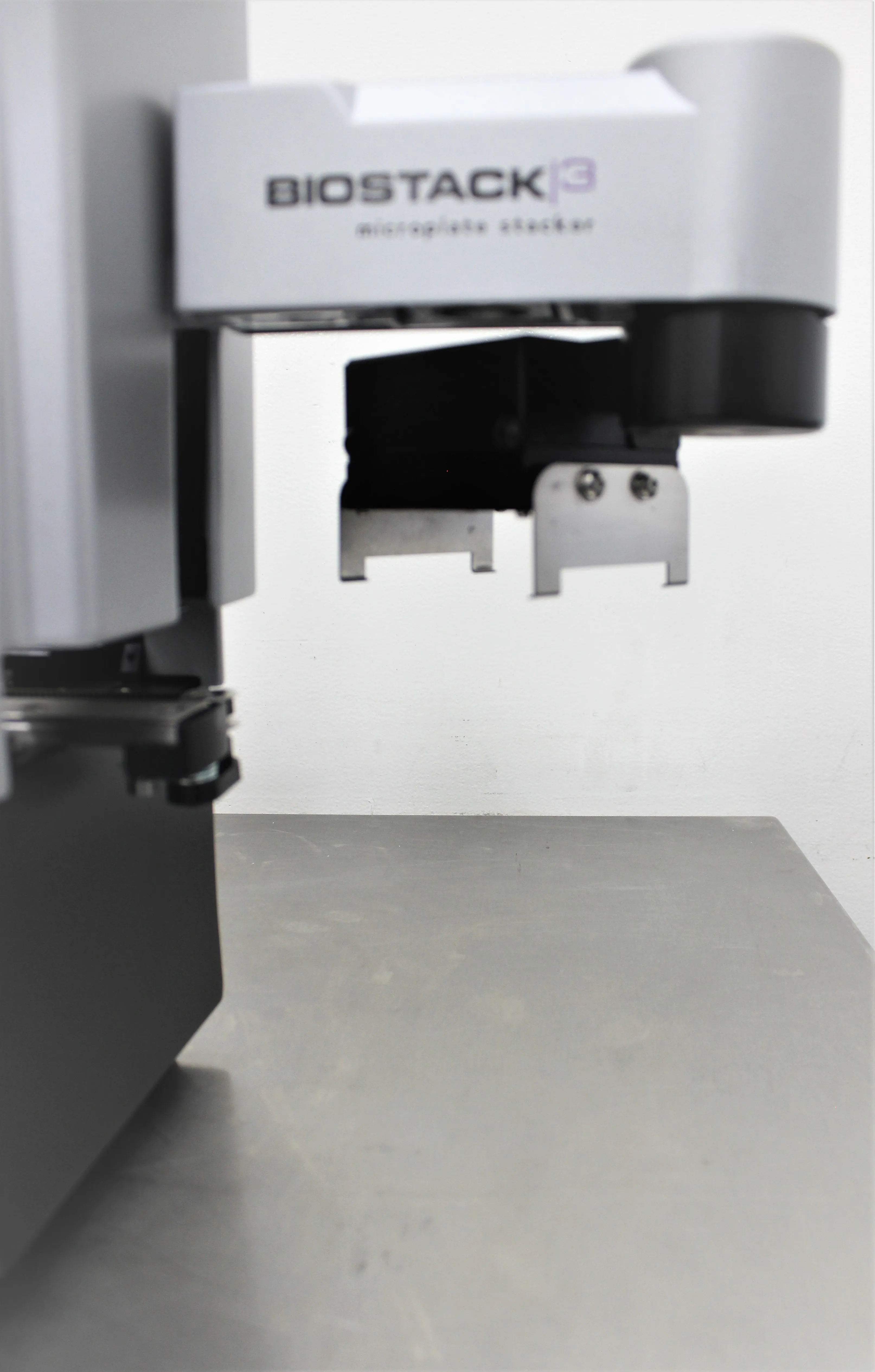

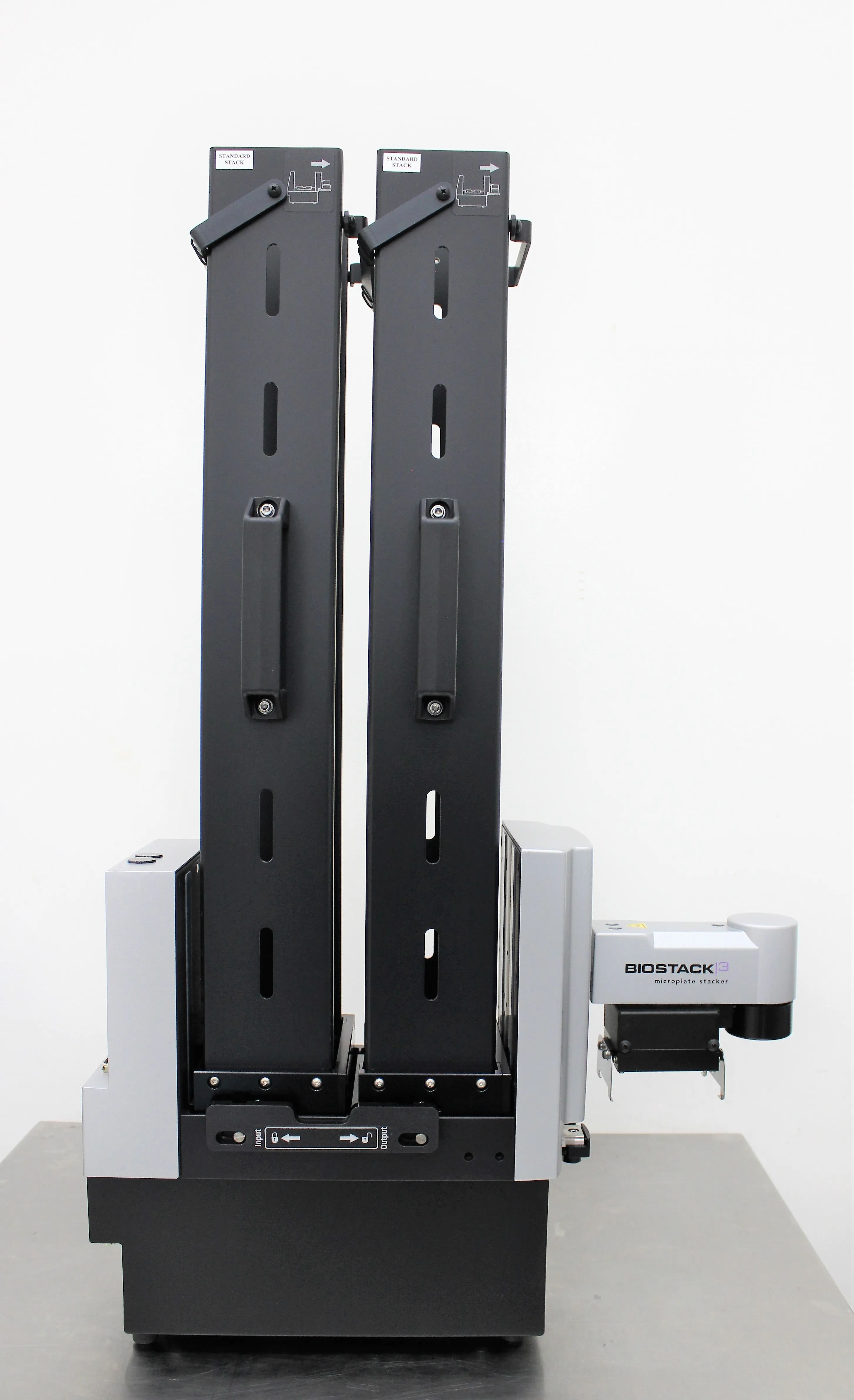

BioTek BioStack 3WR Microplate Stacker with Easily removable, interchangeable stack (Qty2) (one input and one output)
The BioTek BioStack 3WR Microplate Stacker provides automation to routine as to increase throughput and enhance productivity, accommodating assay workflows for 96-well and 384-well plates in BioTek washers, dispensers, detectors, and imaging systems. The BioStack 3WR offers convenient re-stacking for complete automation of endpoint and kinetic processes. The BioStack 3WR model is also capable of supporting +90°, -90°, and 0° integrations; two plates in motion for every transfer. Some of the recommended applications include: absorbance, fluorescence, and luminescence assays; ELISA; and cell-based assays. include 2 Easily removable, interchangeable stack; one input and one output.

Microplate Types

ANSI/SLAS Standard and low profile 96, 384, and 1536 wells; maximum plate height of 14.6 mm

Microplate Capacity

10-, 30-, and 50-plate stacks are removable and interchangeable; 96-/384-well plates: up to 50 plates; 1536-well plates: up to 75 plates

Processing Speed (Plate Exchange Time)

< 10 seconds

Electrical Requirements

100 – 240V, 50/60 Hz

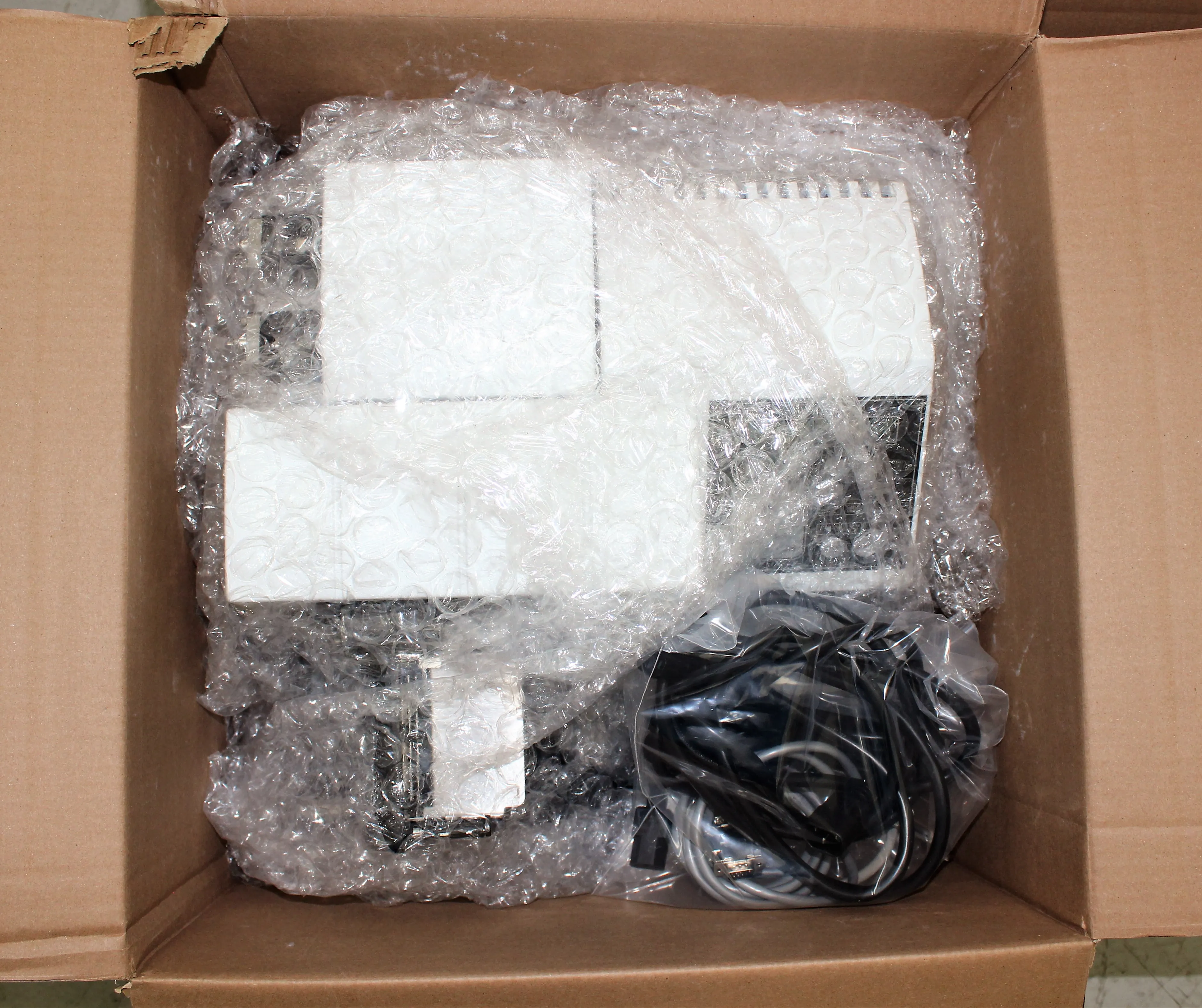

 BioTek Direct Drain Module, waste System with Vacuum pump and waste Bottles kit system

System unit Direct Drain Module, waste System with Vacuum pump and waste Bottles kit redefines industry standards by delivering higher-pressure performance at significantly lower sound levels. Re-engineered from the ground up, these oil-less rocking piston compressors and vacuum pumps offer outstanding performance, durability, and flexibility making them the ideal choice for a wide array of applications. Not to mention, they’re also easy to retrofit, have lower exhaust temperatures and carry a longer life span.

2 carboys with waste sensor and Accessories as Hoses, Communication and power cables. This family of products can be upgraded with Sound Shield which delivers up to a 25% dB(A) drop and a 40% Sone decrease compared to our standard offerings.  Please review the chart at the bottom of the page to determine if your configuration (single or twin cylinder, pressure or flow) is available.  To learn more about Sound Shield technology and to hear it for yourself, please click on the “Sound Shield Available” button or contact your local GAST authorized distributor.

Additional information

Weight 160 lbs
Dimensions 37 × 29 × 40 in
Make Biotek
Model 406PSUB1
Serial 20061716
Manufacturing Date 2020-06-17
Working Working
Item Condition Used
Includes ALL cables (power and data)|Power Cord
Warranty 30-Day Warranty, 100% Parts and Labor
Voltage 120V/220V
hertz 50Hz/60Hz
Shipping Type Freight


★ ★ ★ ★ ★
